Valve Size
|
3/8 in
|
Thread Type
|
FNPT
|
Cold Water Pressure
|
7250 psi
|
Port Diameter
|
0.29 in
|
Temperature Range
|
-10 to 175
|
Handle Type
|
Lever
|
Series
|
VXE
|
Valve Type
|
Ball
|
Operation Type
|
Handle
|
Ball Pattern
|
Double L
|
End Connections
|
FNPT
|
Body Style
|
4-Way
|
Porting
|
Full
|
Weight
|
5.53 lb
|
Number of Ports
|
4
|
Ball Material
|
Chrome Plated Brass
|
Seat Material
|
Delrin® (POM)
|
Body Material
|
Carbon Steel
|
Seal Type
|
Nitrile (NBR)
|
Stem Material
|
Steel
|
Handle Material
|
Steel
|
Trim Material
|
Chrome Plated Brass
|
A Dimensions
|
4.21 in
|
H Dimensions
|
1.87 in
|
Application
|
Agricultural and Food Processing, Altertive Energy and Fuel Production, Bulk Product Movement, Chemical Processing, Compressed Air Services, Condensate Removal, Coolants, Effluent Lines, Degreasing, Pickling, Plating, Washdown, Demineralizers, Dewatering and Sludge Movement, Filtration Systems, Hydraulic/Pneumatic Systems and Lifts, Ink Spraying and Cleaning, Line Purge, Machine Cooling, Mixing, Filling, Material Flow, Municipal Service, Natural Gas and Oil Production, Solid and Liquid Waste Control, Steel Mills, General Chemical Applications
|

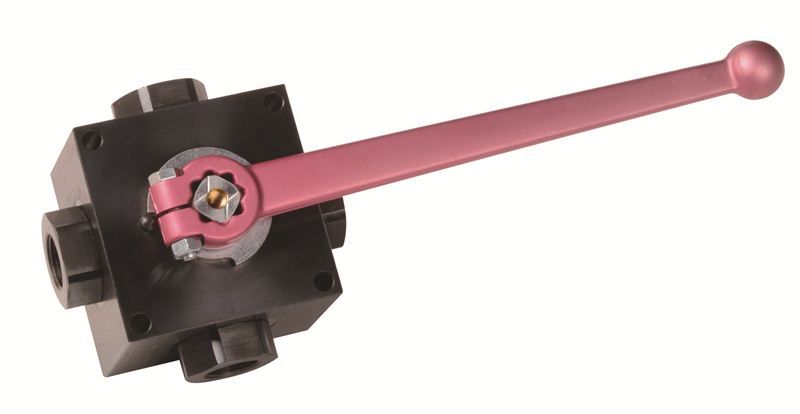

VXE Series multi-port ball valves are diverter valves with 4-way Double L-Port (two-position) for controlling a hydraulic cylinder.. Self-lubricating Delrin® seats. Uses include hydraulic oils, water/oil emulsion, air, glycol and gasoline. Not rated for steam or vacuum applications.
Key Benefits:
- Self-lubricating Delrin® Seats
- Max pressures 4568 to 7250 psi CWP (size specific).
- Temperature range -10 to 175
