The ultra-compact standard AVA fits in the palm of your hand. It is the perfect solution for applications requiring minimal features. It is available with basic on/off, failsafe or hi speed functionality.
|

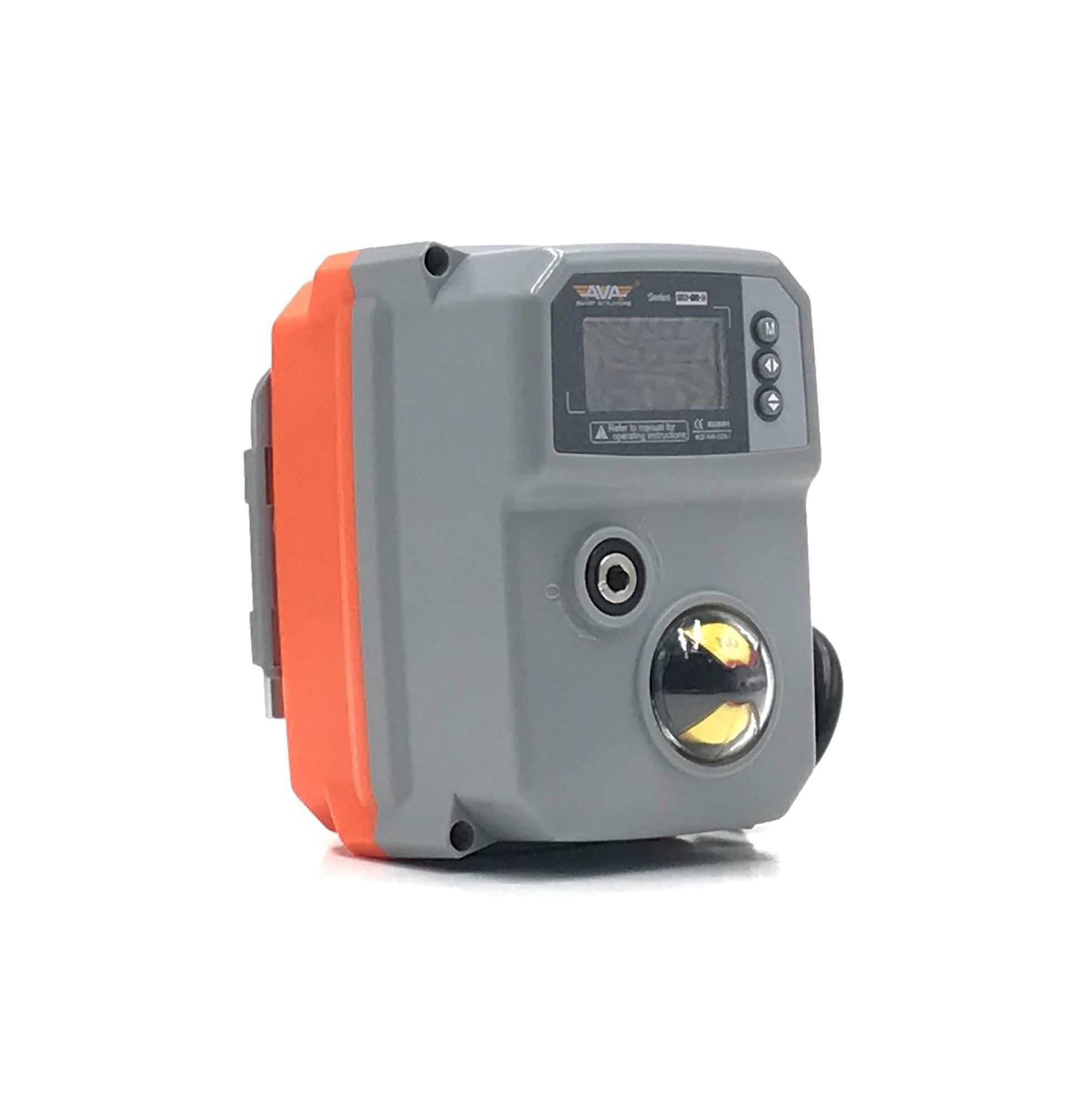

AVA Actuator
|
Smart
|
|
VOLTAGE
|
24 VDC/VAC
|
|
MAX TORQUE IN/LBS BREAK / RUN
|
532 / 443
|
|
Electric Actuator Type
|
Smart Fail Open
|
|
SPEED 90°
|
15 SEC
|
|
WEIGHT LBS
|
4.1
|
|
MOUNTING
|
FO3,F04,F05
|
|
STAR DRIVE /DEEP
|
551 (14mm)/.63
|
|
ENCLOSURE
|
IP67
|
AVA Series Standard Electric Actuators
The standard AVA is the perfect solution for applications requiring minimal features. It is available with basic on/off, failsafe or hi speed functionality. The standard AVA is constructed traditionally with preset internal cams striking micro-switches to stop the reversible motor in the required positions.
AVA Series Features
- Fully weatherproof to IP67
- Dome style local visual indicator
- Manual operation
- End of travel confirmation switches
- Female octagon drive output
- Multiple ISO 5211 mountings
- Anti-condensation heater
- Torque range from 177 in/lbs – 974 in/lbs
