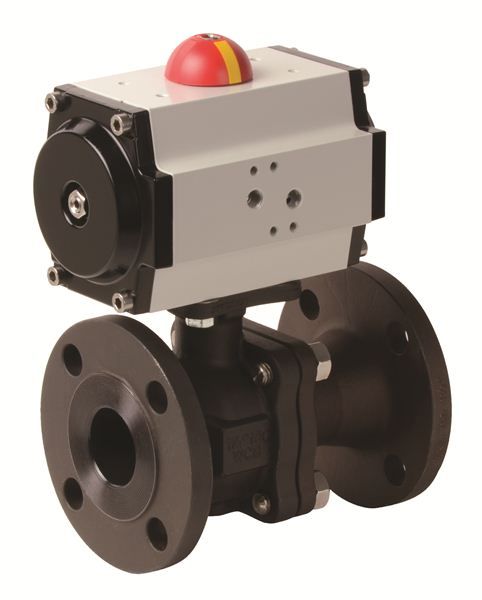

PHC68EJD05, 2PC FL CS PNEU AP SERIES

This current product is Obsolete. Please click on the new product below.
Valve Size 2 in
Pneumatic Actuator Type Double Acting
CROSS REFERENCE ITEM P5C68EJDA075
Series PHC FL
Operator Actuator
Actuator Type Pneumatic
Actuator Part Number AP52DA
Valve Type Ball
Thread Type 150 ANSI Flange
Operating PSI (D) 285 psi
Valve CWP 285 psi
Porting Style Full
Port Opening Size 2
Temperature Range - Media -20 to 450 ºF
Temperature Range - Ambient -10 to 195 ºF
Body Style 2 Piece
Number of Ports 2
Value Body Material Carbon Steel
Valve Cold Working Pressure (PSI) ANSI 150
Valve Construction Carbon Steel
Stem Seal Type PTFE/Viton®
Body Finish Carbon Steel
Ball Material 316 Stainless Steel
Seat Material RTFE
Seal Type PTFE/Viton®
Stem Material 316 Stainless Steel
Body Length 7.00 in
B Dimensions 1.97 in
C Dimensions 6.00 in
D Dimensions 3.33 in
E Dimensions 3.94 in
F Dimensions 8.06 in
G Dimensions 6.34 in
H Dimensions 3.64 in
Application Agricultural and Food Processing, Alternative Energy and Fuel Production, Bulk Product Movement, Chemical Processing, Compressed Air Services, Condensate Removal, Coolants, Effluent Lines, Degreasing, Pickling, Plating, Washdown, Demineralizers, Dewatering and Sludge Movement, Filtration Systems, Hydraulic/Pneumatic Systems and Lifts, Ink Spraying and Cleaning, Line Purge, Machine Cooling, Mixing, Filling, Material Flow, Municipal Service, Natural Gas and Oil Production, Solid and Liquid Waste Control, Steel Mills, General Chemical Applications
REPLACEMENT OR OBSOLETE ITEM OBSOLETE
