  6. P5C64EJSR05210FA2, 2PC FL CS PNEU SR/FO 24VAC

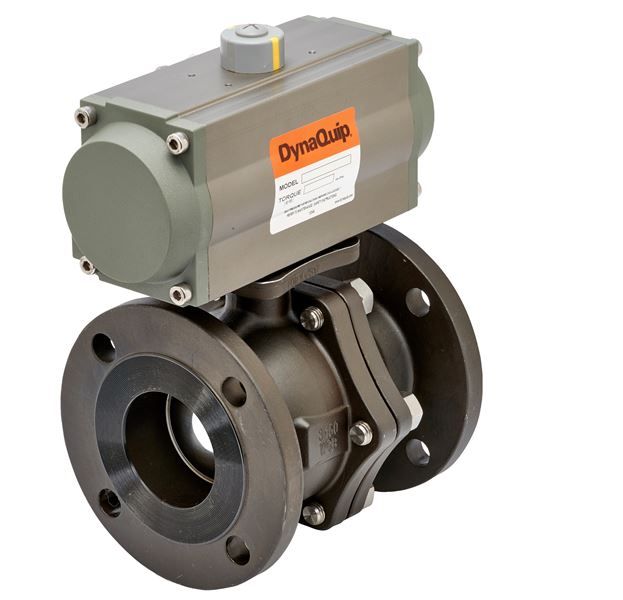

P5C64EJSR05210FA2, 2PC FL CS PNEU SR/FO 24VAC


AHP Actuator Series Drawing
AHP Manual
P5 Series HP-DA CS Drawing
Valve Size 3/4 in
Pneumatic Actuator Type Spring Return - Fail Open
Pneumatic Actuator Accessories Pilot Solenoid 24 VAC
Series P5C
Operator Actuator
Actuator Type HP052SR10F
Valve Type Ball
Thread Type #150 Flange
Operating PSI(D) 285 psi
Valve CWP 285 psi
Porting Style Full
Port Opening Size 3/4
Temperature Range - Media -4 to 392 ºF
Temperature Range - Ambient -4 to 176 ºF
Body Style 2 Piece
Number of Ports 2
Valve Body Material Carbon Steel
Valve Construction Carbon Steel
Stem Seal Type PTFE/Viton
Body Finish Carbon Steel
Ball Material 316 Stainless Steel
Seat Material RTFE
Seal Type PTFE/Viton
Stem Material 316 Stainless Steel
A Dimensions 4.66 in
C Dimensions 0.79 in
Application Agricultural and Food Processing, Alternative Energy and Fuel Production, Bulk Product Movement, Chemical Processing, Compressed Air Services, Condensate Removal, Coolants, Effluent Lines, Degreasing, Pickling, Plating, Washdown, Demineralizers, Dewatering and Sludge Movement, Filtration Systems, Hydraulic/Pneumatic Systems and Lifts, Ink Spraying and Cleaning, Line Purge, Machine Cooling, Mixing, Filling, Material Flow, Municipal Service, Natural Gas and Oil Production, Solid and Liquid Waste Control, Steel Mills, General Chemical Applications
Valve Features
  • Full Port
  • API 607 Fire Safe Approved
  • Carbon Steel (ASTM A216-WCB) Investment Cast Body
  • RTFE Seats, Viton® Stem Seals
  • -20 to 392 deg F
  • Available in 1/2" – 4" ANSI 150 Flanged Ends
Actuator Features
  • Quarter-Turn, high cycling, rack and pinion, air-operated Actuators
  • Available in Double Acting and Spring Return (Fail Open or Fail Close)
  • Optional Pilot Solenoids to control air flow via PLC panel or other electric signal
  • Valve Position Limit Switch (NEMA 4, 4X) to provide local and remote indication of valve position (2 SPDT switches)
  • Life-time lubricated, -4 to 176 deg F (Low Temp and High Temp also available)
