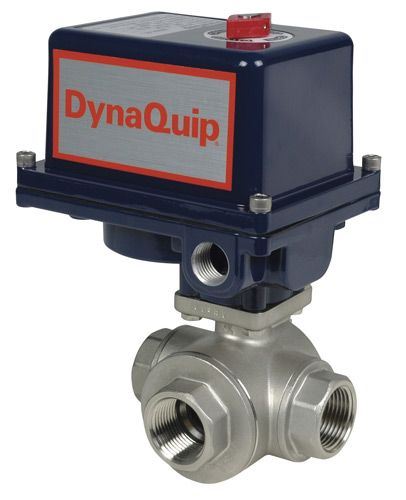

EYSG4AME20, 3WAY SS ELECTRIC


Porting Style L Port
Valve Size 3/4 in
Series EYSG
Port Opening Size .63
Electric Voltage 120 VAC
Operator Actuator
Actuator Type Electric
Actuator Part Number DE305
Valve Type Ball
Thread Type FNPT
Operating PSI (D) 300 psi
Valve CWP 1000 psi
Temperature Range - Media -20 to 450 ºF
Temperature Range - Ambient -40 to 150 ºF
Weight 7.30 lb
Body Style 3-Way
Number of Ports 3
K 5.18 in
Valve Body Material Stainless Steel
Valve Construction Stainless Steel
Stem Seal Type P.E.E.K. (foodgrade)/Viton®/PTFE
Body Finish Stainless Steel
Ball Material 316 Stainless Steel
Seat Material RTFE
Seal Type PTFE/Viton®
Stem Material 316 Stainless Steel
A Dimensions 3.77 in
B Dimensions 2.08 in
C Dimensions 0.79 in
D Dimensions 1.89 in
E Dimensions 1.20 in
F Dimensions 1.91 in
G Dimensions 7.09 in
H Dimensions 4.24 in
J Dimensions 5.66 in
Application Agricultural and Food Processing, Altertive Energy and Fuel Production, Bulk Product Movement, Chemical Processing, Compressed Air Services, Condensate Removal, Coolants, Effluent Lines, Degreasing, Pickling, Plating, Washdown, Demineralizers, Dewatering and Sludge Movement, Filtration Systems, Hydraulic/Pneumatic Systems and Lifts, Ink Spraying and Cleaning, Line Purge, Machine Cooling, Mixing, Filling, Material Flow, Municipal Service, Natural Gas and Oil Production, Solid and Liquid Waste Control, Steel Mills, General Chemical Applications

The DynaMatic EYSG Series of electrically actuated stainless steel three-way valves offers and excellent option for automated diverter-type applications where corrosion-resistant stainless steel is required. The EYSG Series uses our DE and MA Series electric actuators. The EYSG Series valves are available with 115VAC, 220VAC, 24VAC, 24VDC, and 12VDC. All models are pre-sized for clean water, air, or light oil applications. Contact us for severe service or special actuator options.

Features Include:

  • 316 Stainless Steel Bodies and Trim
  • Standard Port
  • 3-Way “L” Pattern Diverter Ball Valve
  • Four RTFE Seats Allow Flow in Any Direction
  • NPT Female Threaded Ends
  • Viton Stem Seals
  • ISO 5211 Direct Mounting
  • "T" Pattern Available
