Valve Size
|
2 1/2 in
|
Electric Voltage
|
120 VAC
|
Series
|
EYHG
|
Operator
|
Actuator
|
Actuator Type
|
Electric
|
Actuator Part Number
|
MA7
|
Valve Type
|
Ball
|
Thread Type
|
FNPT
|
Operating PSI (D)
|
300 psi
|
Valve CWP
|
400 psi
|
Porting Style
|
Standard
|
Port Opening Size
|
2 1/2
|
Temperature Range - Media
|
-20 to 300 ºF
|
Temperature Range - Ambient
|
10 to 140 ºF
|
Body Style
|
3-Way
|
Number of Ports
|
3
|
Valve Body Material
|
Brass
|
Valve Construction
|
Brass
|
Stem Seal Type
|
Viton®
|
Body Finish
|
Brass
|
Ball Material
|
Ni-Chrome Plated Brass
|
Seat Material
|
PTFE
|
Seal Type
|
PTFE/Viton®
|
Stem Material
|
Nickel Plated Brass
|
Body Length
|
6.93 in
|
B Dimensions
|
4.37 in
|
C Dimensions
|
1.95 in
|
D Dimensions
|
3.47 in
|
E Dimensions
|
2.20 in
|
F Dimensions
|
3.35 in
|
G Dimensions
|
13.39 in
|
H Dimensions
|
13.00 in
|
J Dimensions
|
7.87 in
|
K Dimensions
|
10.04 in
|
Application
|
Agricultural and Food Processing, Altertive Energy and Fuel Production, Bulk Product Movement, Chemical Processing, Compressed Air Services, Condensate Removal, Coolants, Effluent Lines, Degreasing, Pickling, Plating, Washdown, Demineralizers, Dewatering and Sludge Movement, Filtration Systems, Hydraulic/Pneumatic Systems and Lifts, Ink Spraying and Cleaning, Line Purge, Machine Cooling, Mixing, Filling, Material Flow, Municipal Service, Natural Gas and Oil Production, Solid and Liquid Waste Control, Steel Mills, General Chemical Applications
|

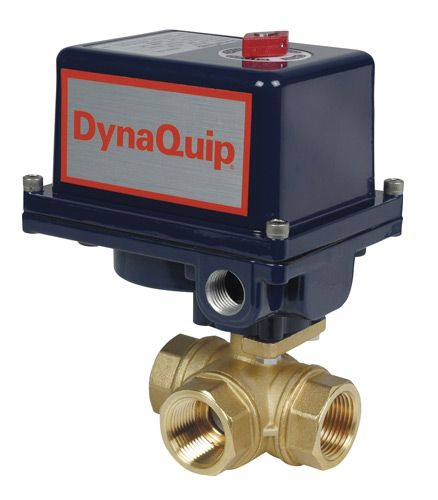

DynaMatic EYHG Series of electrically actuated three-way brass valves offers an excellent option for automated diverter-type applications. Designed specifically for actuation, the ball valves have O-ring seals for lower torque and longer cycle life. All models are pre-sized for clean water, air, or light oil applications. Please call DynaQuip Customer Service for recommendations and actuator sizing when dirty or severe service applications are needed. The EYHG Series uses our DE and MA Series electric actuators, and are available with 115VAC, 220VAC, 24VAC, 24VDC, and 12VDC.
Features Include:
- Forged Brass Body
- Chrome Plated Brass Ball
- 3-Way “L” Pattern Diverter Ball Valve
- NPT Female Threaded Ends
- RTFE Seats, Viton Stem Seals
- ISO 5211 Direct Mounting
- "T" Pattern Available
