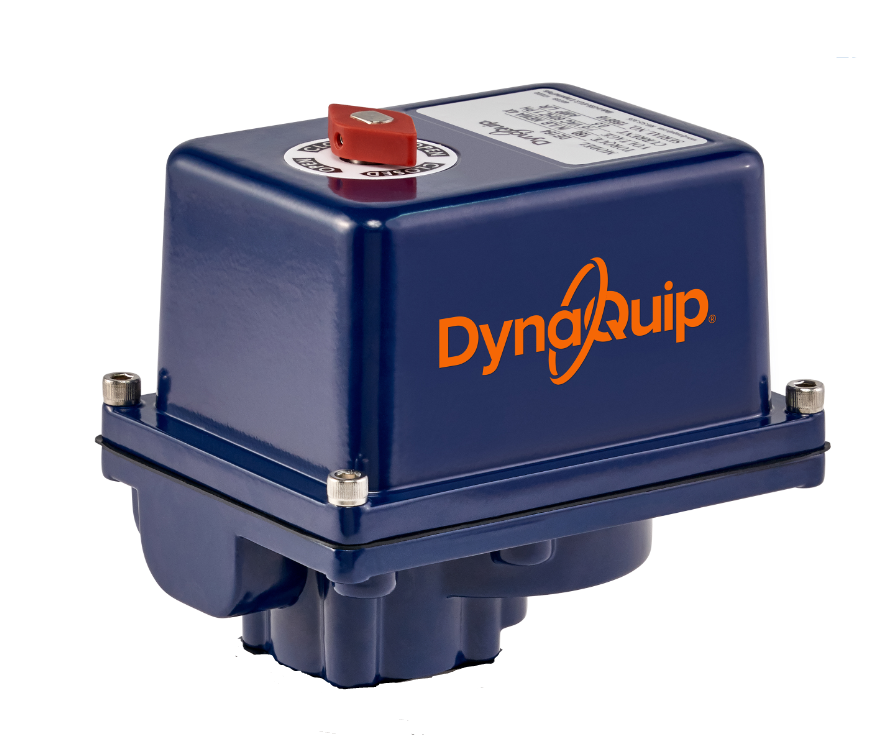

Electric Actuator - DE Series - 0 - 300 in·lbs

The DE series of electric actuators are ultra-compact and provide a high output-to-size ratio. In addition, the DE series has a multitude of features not normally found in this class of actuator.

DynaQuip Electric actuators provide a solid foundation for automating almost any quarter-turn application. Electric actuators are used where plant air and compressors are not available. They are the actuators of choice in cold temperatures corrosive environments and are easily integrated into distributed control systems. Automating ball, butterfly, and plug valves are the primary application of most end users.

In addition to our pre-sized automated assemblies DynaQuip Controls can provide actuators and hardware to automated existing valves of other brands and manufacturers.

Sort by
Display
per page
Item # Voltage Torque Height Width Length Weight List Price
DE153 120 VAC 150 in·lb 5.18 in 4.24 in 5.66 in 4.00 lb
Quote
DE153B 220 VAC (1 Phase) 150 in·lb 5.18 in 4.24 in 5.66 in 4.00 lb
Quote
DE153H 12-24V AC/DC 150 in·lb 5.18 in 4.24 in 5.66 in 4.00 lb
Quote
DE154 120 VAC 150 in·lb 5.18 in 4.24 in 5.66 in 4.00 lb
Quote
DE154B 220 VAC (1 Phase) 150 in·lb 5.18 in 4.24 in 5.66 in 4.00 lb
Quote
DE154H 12-24V AC/DC 150 in·lb 5.18 in 4.24 in 5.66 in 4.00 lb
Quote
DE305 120 VAC 300 in·lb 5.18 in 4.24 in 5.66 in 4.00 lb
Quote
DE305B 220 VAC (1 Phase) 300 in·lb 5.18 in 4.24 in 5.66 in 4.00 lb
Quote
DE305H 12-24V AC/DC 300 in·lb 5.18 in 4.24 in 5.66 in 4.00 lb
Quote
